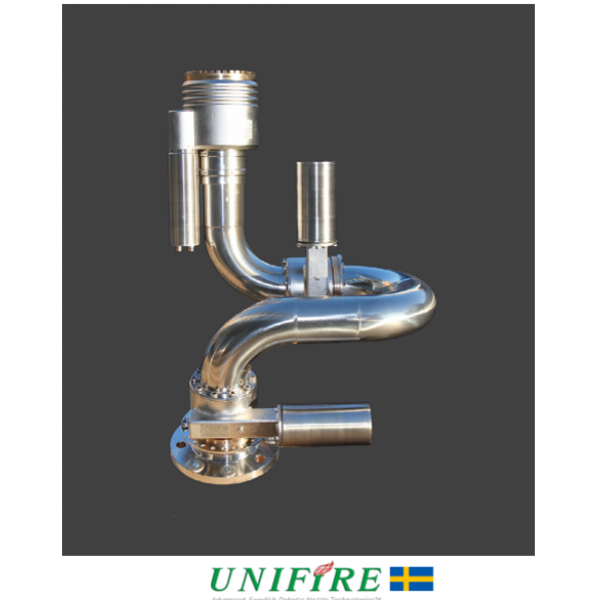

Force 80 BLDC Robotic Nozzle Chassis

3” (80mm) electric 24V brushless motor (BLDC)
robotic nozzle (a.k.a. “remote control monitor” or
“water cannon”) suitable for fire fighting.
Made of 316L Stainless Steel (EN1.4404).
Robust and suitable for harsh environments.
Compatible with use of foam, salt-water, and
other harsh agents.
Smooth, large (80mm) pipe bends for minimal
friction loss.
Fully integrated and enclosed stainless steel
worm gears, with Bronze (CuSn12) gear wheels.
Fully enclosed BLDC brushless motors provide extremely long life, high torque and allow extremely accurate positioning and position feedback.
Modular design for capability of changing damaged pipe sections and gear housings.
Very low-maintenance; never requires re-greasing.
Mass: Approx. 33 kg (73 lbs) with nozzle.
Dimensions (w/ Integ nozzle): 34 x 48 x 75 cm
(13.4” x 18.9” x 29.5” inches)
Ambient temperature range: -25°C to +70°C

Maximum Operating Capacity (Flow):
5500 liters (1453 gallons) per minute; 330 m3/hr)

Max Working Pressure:
12 bar (174 psi)

Nominal Operating Pressure:
10 bar (145 psi)
